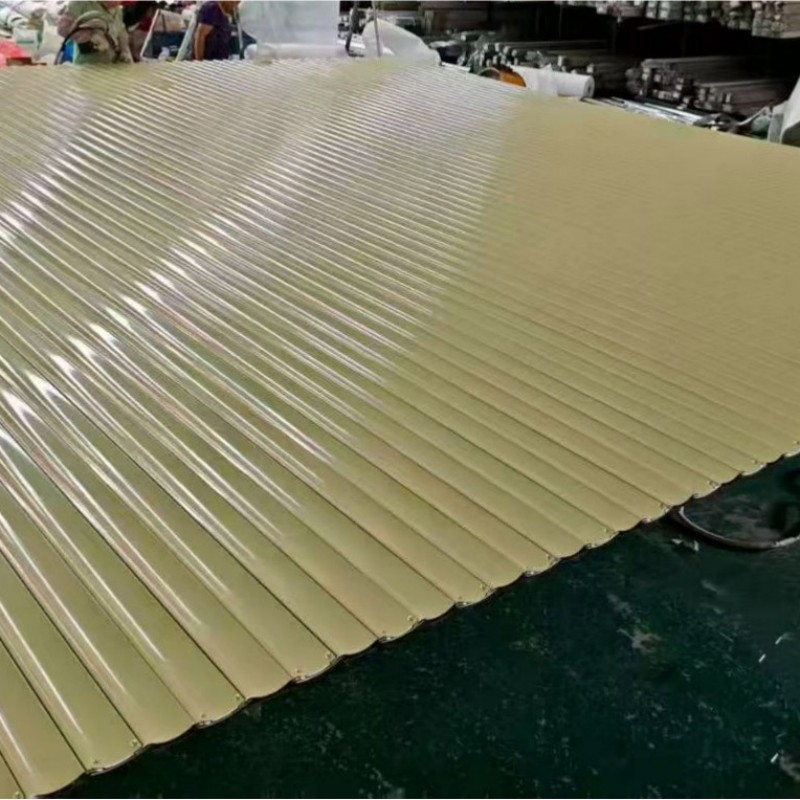

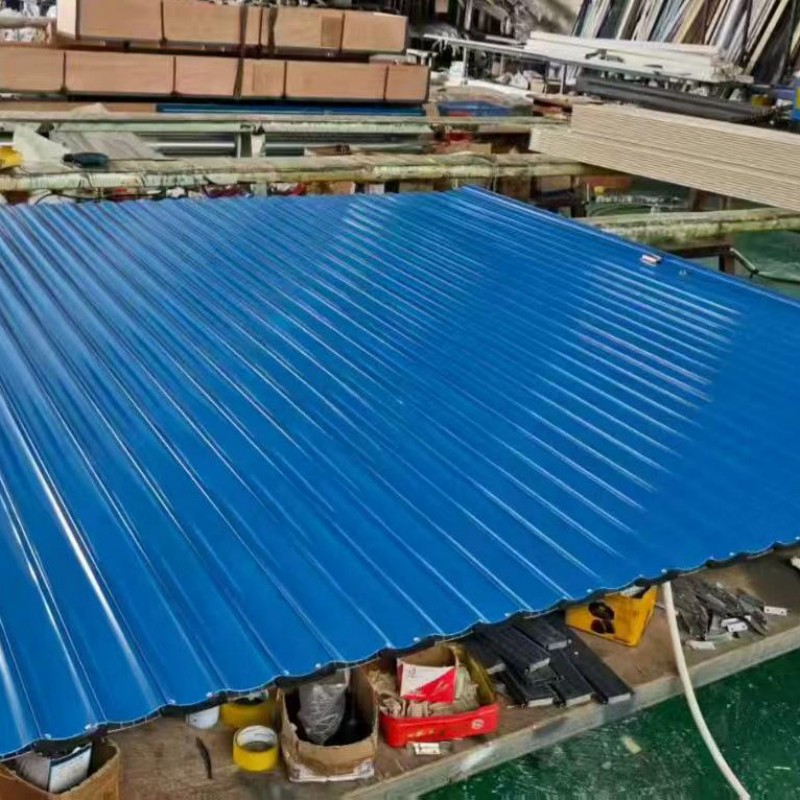

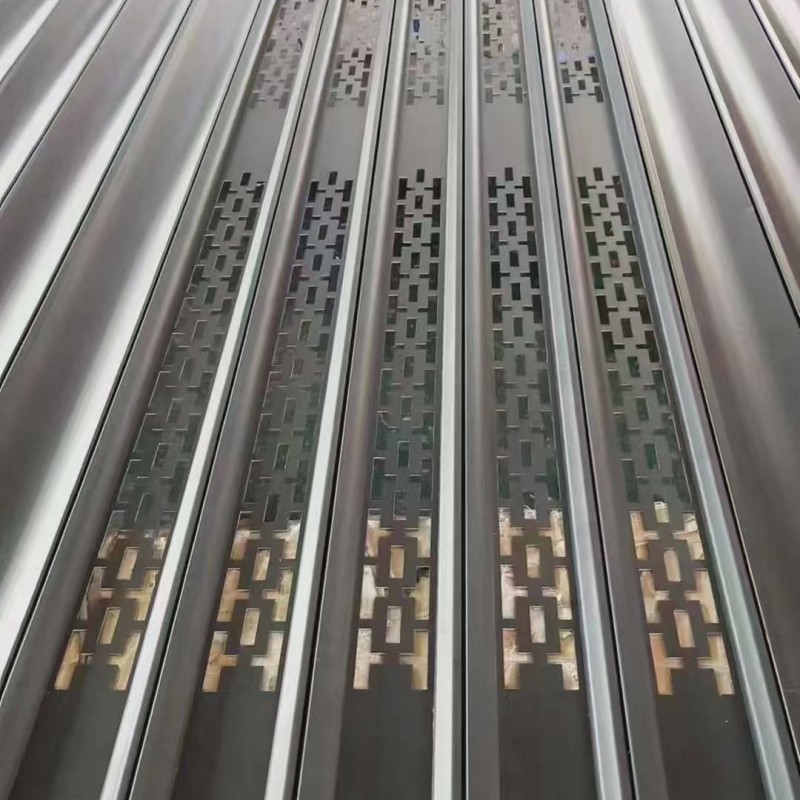

Galvanized Iron Roller Shutter Doors

Futai Galvanized Iron Roller Shutter Doors are designed specifically for industrial and commercial environments, committed to providing reliable and durable roller shutter door solutions within budget. We use high-quality galvanized steel, with raw material standards ranging from Z100 to Z180 grades and thicknesses available in various options from 0.7mm to 1.5mm, ensuring both structural strength and long-term cost-effectiveness.
Thanks to our precise manufacturing process, our roller shutter doors meet high industry standards in terms of anti-theft performance, wind pressure resistance, and corrosion resistance. Whether you are working on a new construction project or a renovation, Futai can provide you with professional protection solutions tailored to your specific needs.

Product Feature And Application

1. Sturdy and Durable, Long Lifespan
Made of high-grade Z100-Z180 galvanized steel plate, with a uniform and dense double-sided galvanized layer for superior corrosion resistance.
Thickness options of 0.7-1.5mm, with internal reinforcing rib structure design, providing excellent pressure and impact resistance, suitable for high-frequency use scenarios.
2. Secure and Anti-theft, Reliable Protection
Multiple interlocking design between curtain slats, combined with reinforced side locking points and bottom anti-pry structure.
Can integrate intelligent devices such as infrared sensors and anti-collision rebound systems to enhance overall safety.
3. Wide Application, Flexible Customization
Offers multiple control methods including manual, electric, and smart remote control, adapting to different usage scenarios.
Supports non-standard size customization, and can be equipped with functional components such as viewing windows and emergency doors.
4. Economical and Practical, Easy Maintenance
The galvanized surface requires no painting, and only needs to be wiped with water for daily maintenance, resulting in very low maintenance costs.
Simple and reliable structure, quick installation, and stable and worry-free long-term use.
The galvanized layer effectively resists moisture, temperature changes, and mild chemical corrosion, suitable for various environments such as warehouses, factories, and parking lots.

Production Details

1. Material Specifications
Galvanized Iron Roller Shutter Doors is made of cold-rolled carbon steel coil sheet conforming to GB/T 2518 standard, offering four double-sided galvanized coating grades: Z100, Z120, Z150, and Z180.
Standard thickness: Five standard thicknesses available: 0.7mm, 0.8mm, 1.0mm, 1.2mm, and 1.5mm; custom thicknesses are also available.
Surface treatment: Standard is galvanized natural color, with optional color powder coating.
2. Structural Design Parameters

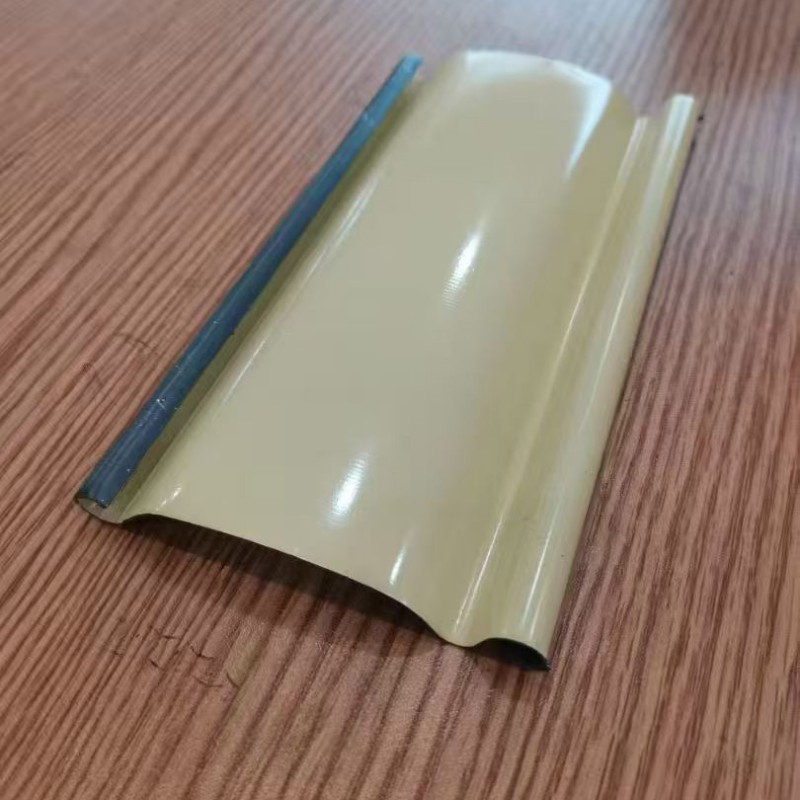

Structural design: Adopts a double-layer hollow reinforced rib structure with internal transverse anti-bending design.
Connection method: Stainless steel rivet hinge connection with linkage roller assembly.
3. Guide Rail System Configuration
Guide rail material: Galvanized steel plate with a thickness of not less than 2.0mm.
Guide rail design: Embedded double-layer nylon brush guide rail system for silent operation and effective dust prevention.
Roller system: Double-bearing nylon rollers with built-in steel core load-bearing structure.
4. Drive System Options
Manual operation type: Equipped with alloy chain.
Electric drive type: Uses a tubular motor, with optional DC or AC voltage.
5. Safety Protection System
Locking system: Multi-point mechanical lock on the side combined with electric ground lock.
Safety devices: Optional infrared light curtain, bottom sensing strip, and anti-collision rebound module.
Emergency function: Standard equipped with power-off manual unlocking mechanism.

Why choose us

(1) Reliable quality: From raw material procurement to finished products, we have a scientific quality control process.
(2) Strong technical capabilities: We have professional and experienced technical personnel for the design, manufacturing, and installation of roller shutter doors.
(3) Quality assurance: Key motors and electrical components use top-tier brands. All products undergo operational testing and safety function checks before leaving the factory to ensure they meet customer requirements and relevant industry standards.
