Awning-type Exterior Roller Shades, sometimes also called folding outdoor roller shades or louvered outdoor roller shades (though their core drive differs from that of louvers), are outdoor shading and protective devices that use a swing-arm (linkage) mechanism to extend and retract the shade fabric. They are usually combined with a side guiding system (which may be rails or guide grooves, or sometimes no rails at all, relying solely on the swing arms for constraint). The core principle is to use one or more sets of crossed or parallel swing arms (similar in structure to a canopy frame) to drive the shade fabric during raising and lowering. Through the rotation and extension/folding of the swing arms, the fabric is unfolded from the roller into a flat or slightly arched shading surface, or retracted from the extended state back onto the roller.

The 'Articulated Arm Guide Rail Exterior Roller Shades' is a type of roller shutter system used for outdoor shading, rain protection, insulation, and security. It operates through a flexible articulated arm track, roller, and curtain, allowing it to open and close, making it more suitable than ordinary straight-track roller shutters for irregular doors and windows, terraces, sunrooms, and similar scenarios.

Futai's China Trackless Exterior Roller Shades, as the name suggests, are a type of roller blind system installed on the exterior of buildings but do not use vertical rigid guide rails on either side of the slats. They primarily rely on the structural strength of the slats themselves, special side designs, and a precise tension system to withstand wind forces, and they achieve waterproof and dust proof effects through optimized top and bottom seals.

Exterior Track-guided Roller Shades are sunshading devices installed above the window openings on the exterior of buildings, and can be either motorized or manual. Their core structure is similar to that of ordinary indoor roller blinds, consisting of a roller tube, a drive system (tubular motor), slats, and a bottom rail.

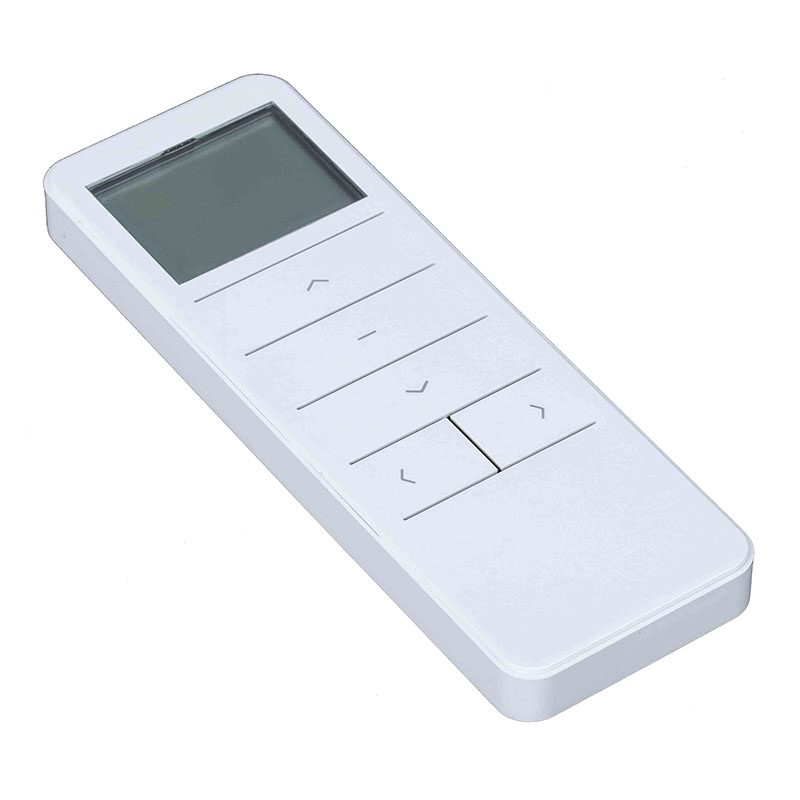

The Futai's China Remote Control for Roller Shutter is an electronic device that achieves remote control of a target device through wireless signal transmission. It mainly consists of a transmitter (remote control, mobile phone, sensor, etc.) and a receiver (controller, actuator). Its working principle is: the transmitter encodes user commands (such as switching, adjusting, or mode changing) into specific signals (radio frequency, Bluetooth, etc.) and transmits them to the receiver via a wireless medium; the receiver decodes the signal and drives the actuator (motor, lighting, home appliances, etc.) to complete the operation.

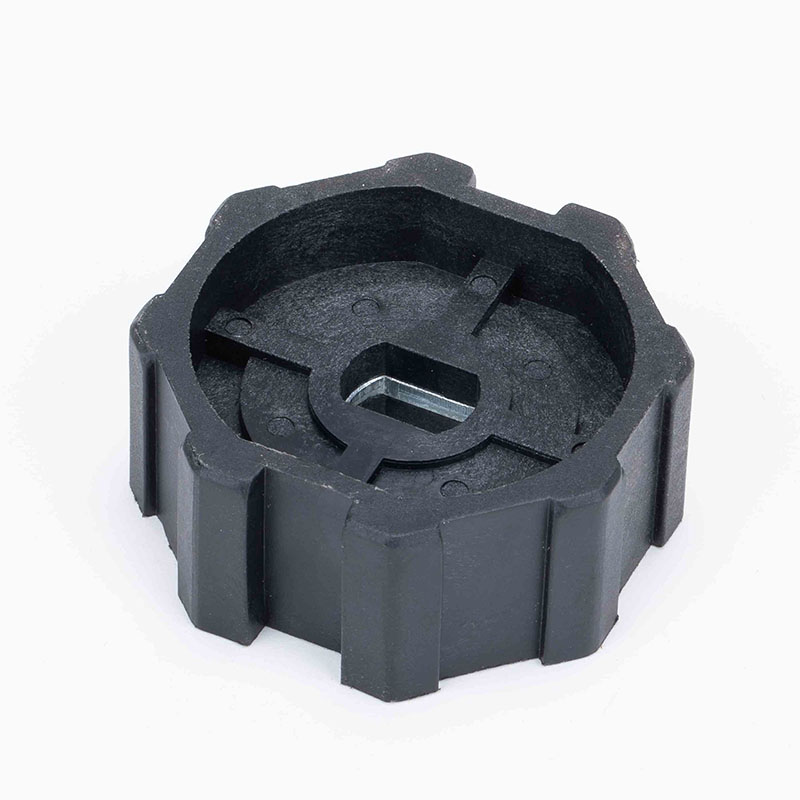

Futai factory's China Drive Adapter for Roller Shutter (commonly referred to as the drive wheel or the active wheel) is a core power output component located inside or outside the tubular motor (also known as a "tubular motor"). Its main function is to transfer the rotational torque generated by the motor to the load in contact with it (such as curtain fabric, roller shutter slats, awning fabric, etc.) through friction or engagement, thereby driving the load to move linearly (up and down or open and closed).
