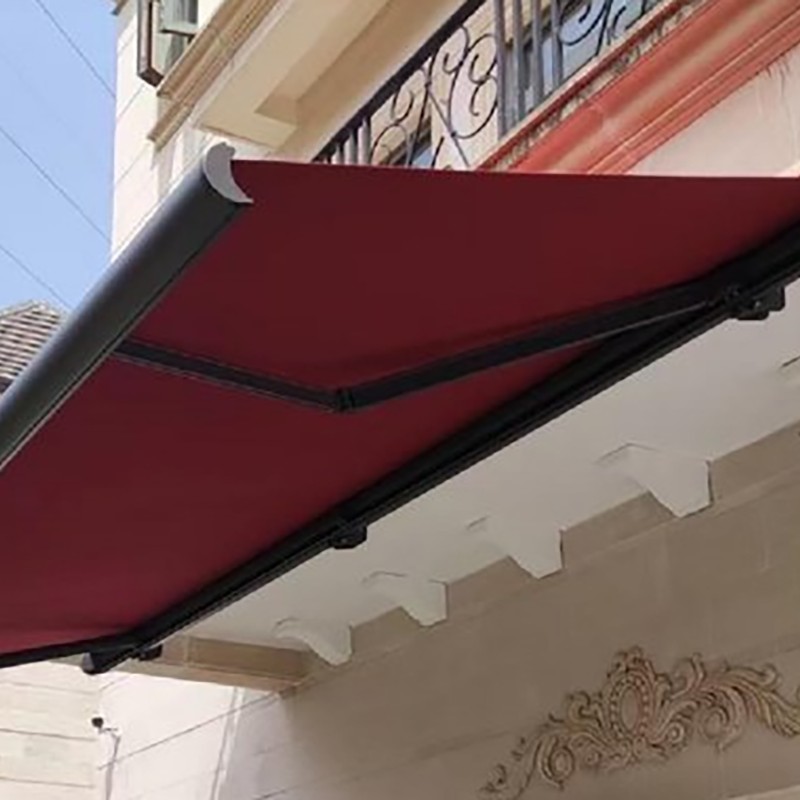

Hinged Support Rail Outdoor Roll-up Sun Screen

When Futai Factory developed this Hinged Support Rail Outdoor Roll-up Sun Screen, it integrated multiple functions such as wind resistance, heat insulation, waterproofing and shading. It supports both manual and intelligent electric dual control modes, balancing architectural aesthetics with outdoor durability. The factory produces it with standardized precision craftsmanship. The hardware is protected against rust and corrosion, the fabric is anti-aging, and the operation is quiet and stable. It is an integrated preferred solution for shading renovations in residential courtyards, commercial outdoor spaces, and special venues.

Product application

1. Sun shading for unconventional residential spaces

This product is specially designed to meet the needs of common sun shading devices such as arc-shaped balconies, sloping roof sunrooms, polygonal floor-to-ceiling windows, and curved terraces, which cannot be adapted to certain residential scenarios. It not only provides daily shading, heat insulation, and privacy protection but also optimizes the indoor living comfort.

2. Outdoor protection for commercial scenarios

Our Hinged Support Rail Outdoor Roll-up Sun Screen is widely used in outdoor seating areas of coffee shops, outdoor display zones of restaurants, storefronts of shops, and outdoor corridors of venues. It can prevent strong sunlight exposure, rain erosion, and sand accumulation, thereby extending the usage time of outdoor business areas.

3. Protection for industrial and special sites

It is suitable for semi-open spaces such as car shelters, greenhouse sheds, equipment machine rooms, and logistics channels. While ensuring ventilation and air circulation, it achieves sun shading, dust prevention, and UV protection, protecting equipment and materials.

4. Energy-saving renovation projects for buildings

It is suitable for energy upgrades of office buildings, villas, and public buildings. By blocking outdoor heat radiation, it reduces indoor air conditioning energy consumption and achieves low-carbon energy saving and temperature control noise reduction effects.

5. Customized protection for multi-functional scenarios

It can be paired with mosquito nets, safety locks, and wind-proof clips, and can be switched between sun shading, ventilation, and closed protection modes with a single button, meeting the usage needs of different weather conditions throughout the year.

Core product features

1. Flexible hinged adaptation, compatible with irregular buildings

2. Adhesive-type airtight sealing, stronger wind resistance stability

3. Multiple material fabrics available for selection, functional layering adaptation

4. Quiet and intelligent operation, convenient and diverse control

5. Corrosion-resistant and weather-resistant, long-lasting durability

6. Modular customized installation, wide adaptability

Actual operating condition performance test

1. Abnormal shape fitting operation test

Repeated up and down tests were conducted on three types of abnormal shapes (arch, inclined surface, and curved surface). The hinged guide rail flexibly bends and moves, and the curtain body does not have pulling, folding, or deviation. The entire operation is smooth without any jamming, and the fitting accuracy is precise.

2. Outdoor wind resistance stability test

Simulated various levels of natural wind disturbances in outdoor conditions. The curtain body fits tightly without significant swaying. The dynamic wind resistance performance is excellent. In strong wind conditions, there will be no derailment, edge curling, or abnormal noise. The operation stability is reliable.

3. Weather resistance aging and durability test

The Hinged Support Rail Outdoor Roll-up Sun Screen underwent long-term tests under ultraviolet exposure, alternating high and low temperatures, and rain spray cycles. The fabric did not age, crack, or fade, and the metal guide rail did not rust or deform. The entire machine has outstanding ability to withstand outdoor harsh environments.

4. Heat insulation and shading performance test

Measured the shading and heat transfer coefficients of different fabrics. High shading fabrics can effectively block strong light and heat radiation, significantly reducing the indoor temperature rise rate. The space temperature control energy-saving effect is remarkable, suitable for summer high-temperature outdoor scenarios.

5. Noise operation test

The electrically driven entire machine operates at a constant speed with low noise below industry standards. It runs smoothly without resonance or abnormal noise, and will not interfere with the quiet environment of home or commercial operations. It is suitable for close-range use in indoor and outdoor scenarios.

6. Whole machine lifespan cycle test

The motor underwent tens of thousands of up and down cycle tests. It was sensitive to start and stop, had stable power and no attenuation. The hinged joint repeatedly bent without loosening or jamming. The mechanical structure of the entire machine had high durability and a very low failure rate over a long period of use.

7. Installation compatibility and load-bearing test

Real tests of the load-bearing and fastening performance in multiple scenarios. The installation structure was evenly stressed, and there were no loosening or detachment hazards during long-term full-load operation. It was suitable for various wall and ceiling structures for safe installation and use.
