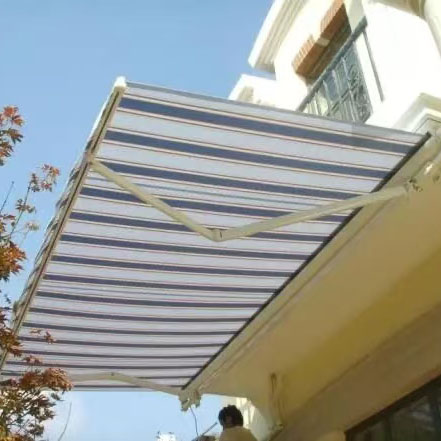

How Do Awning-Type Exterior Roller Shades Balance Wind Resistance, Ventilation & Long-Term Outdoor Service Life?

1. Swing arm linkage structure realizes large-span retractable shading with natural ventilation space

Different from vertical roller shades fixed by full side rails, this awning-style shade adopts parallel or crossed swing arm frame as the core stretching structure. The swing arms drive the fabric to unfold into flat or slightly arched shading surfaces and roll back onto the roller when not in use. Since the system does not require fully enclosed side guide grooves, gaps are reserved between the fabric and walls to maintain smooth air circulation, avoiding stuffy heat accumulation under the shade. The product supports a maximum width of 8 meters and height up to 5 meters after customized reinforcement, meeting large-area shading demands of floor-to-ceiling windows, terrace facades and public building outer walls. The variable cross-section swing arm design evenly distributes wind load, effectively reducing overall shaking during outdoor operation.

2. Multi-layer weather-resistant fabric options match different shading and anti-aging demands

Rollersys equips this awning shade with a complete range of industrial-grade outdoor fabrics to adapt to diverse regional climates. Available materials include PVC/acrylic/PVDF coated polyester fiber, fiberglass composite cloth and aluminum foil laminated fabric, with gram weight ranging from 400g/㎡ to 1500g/㎡. High-weight fabrics maintain stable unfolded shape under wind pressure, while special UV-coated formulas slow down aging and fading. The shading coefficient can be adjusted between 0.2 and 0.8 according to fabric color and coating, effectively blocking solar heat and lowering indoor temperature; the heat transfer coefficient is controlled below 3.5 W/(㎡·K), delivering stable energy-saving performance for buildings all year round. All fabrics support 5 to 10 years of outdoor service without obvious cracking or light transmission failure.

3. Multiple drive modes and smart sensor configuration adapt to residential and commercial automatic management

The shading system reserves three complete operation modes to fit different project budgets and usage habits. Manual control relies on hand crank or push rod operation with zero running noise, suitable for small residential balconies without power supply; electric versions adopt IP54 dustproof and waterproof tubular motors, supporting remote control and timing setting, with operation noise controlled below 60dB. High-end customized schemes can be equipped with wind induction sensors, which automatically retract the fabric when wind speed exceeds the safety threshold to prevent structural damage. The motor supports 50,000 to 80,000 opening and closing cycles, covering 5 to 8 years of stable daily operation for commercial buildings.

4. Anti-rust hardware and graded wind resistance design guarantee stable performance in harsh outdoor environments

All swing arms, brackets and auxiliary guide rails are made of galvanized steel or 304 stainless steel to resist rain, dew and coastal salt fog corrosion, with hardware service life exceeding 10 years. The structural wind resistance is divided into multiple grades: static wind resistance reaches Level 5 to Level 10 depending on arm thickness and fabric weight, while the safe dynamic wind resistance is limited to Level 7 to avoid excessive sway. For projects located in windy coastal areas, we can add locking accessories to strengthen the swing arm fixing after unfolding. The whole set of hardware undergoes strict anti-corrosion treatment before delivery, eliminating rust jamming failure caused by long-term outdoor exposure.

5. Wide cross-industry application covers residential, commercial and public construction projects

The integrated advantages of large span, ventilation and retractable storage make awning-type exterior roller shades widely adopted in multiple construction scenarios. For residential villas and apartment terraces, they create comfortable semi-outdoor activity spaces without blocking natural light when retracted. Cafés, shopping malls and office buildings use this system to reduce air conditioning energy consumption and improve customer experience in outdoor rest areas. Schools, exhibition halls and other public buildings adopt customized large-size shades to unify the exterior facade style while meeting energy-saving standards. In addition, special reinforced versions can be matched to industrial plant windows to block high-temperature solar radiation in production workshops.

6. Full custom parameter support meets personalized engineering project requirements

Rollersys provides full-dimensional customization services for global engineering contractors and distributors. Customers can adjust the overall width and height, select flat or arched unfolding shape, and match fabric material, gram weight and shading performance according to local climate. We can configure manual, electric or full smart sensor linkage systems as required, and provide exclusive export packaging schemes to prevent collision damage during long-distance sea transportation. The complete parameter system including transverse module, pitch cone angle and fabric tension can be adjusted one-to-one based on architectural drawings, supporting batch standardized procurement for large construction projects.

Rollersys specializes in the R&D and customized production of awning-type exterior roller shades, with mature production technology and complete weather resistance testing standards. We provide one-stop solutions including parameter matching, sample confirmation and bulk project delivery for global residential renovators, commercial builders and public engineering contractors, helping customers realize energy-saving, durable and beautiful building exterior shading effects.
