Fire-resistant Roller Shutter Doors

Manufacturing Fire-resistant Roller Shutter Doors is one of Futai Factory's main businesses. Fire-resistant roller shutters are crucial for the safety of people and property, making it especially important to choose a reliable supplier. We have professional technicians who understand the relevant technical specifications and possess extensive design experience. Furthermore, we have strict quality control procedures from the purchase of raw materials to every processing step.

Send Inquiry

Product Description

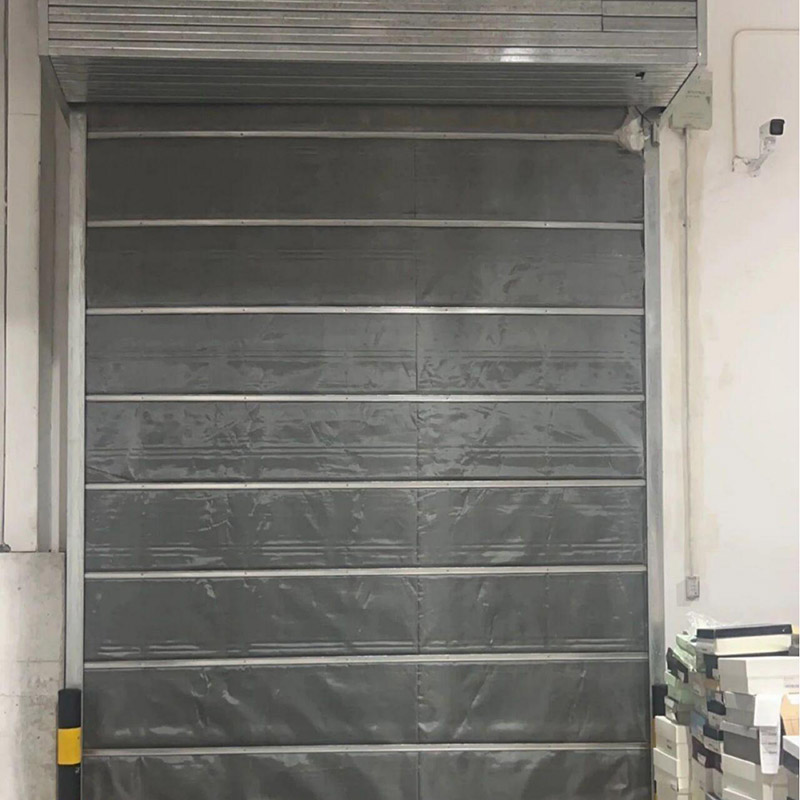

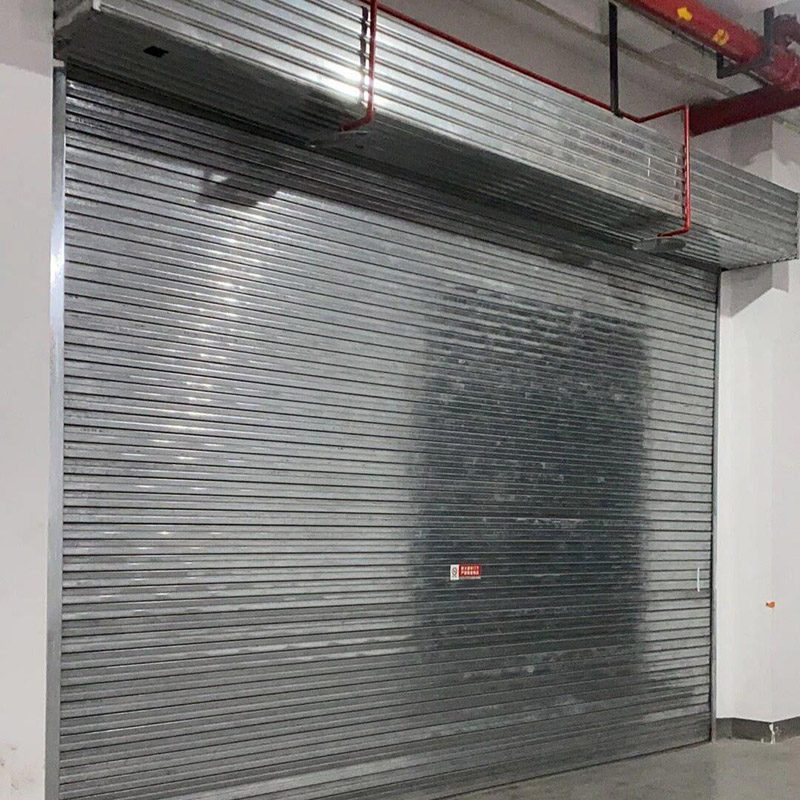

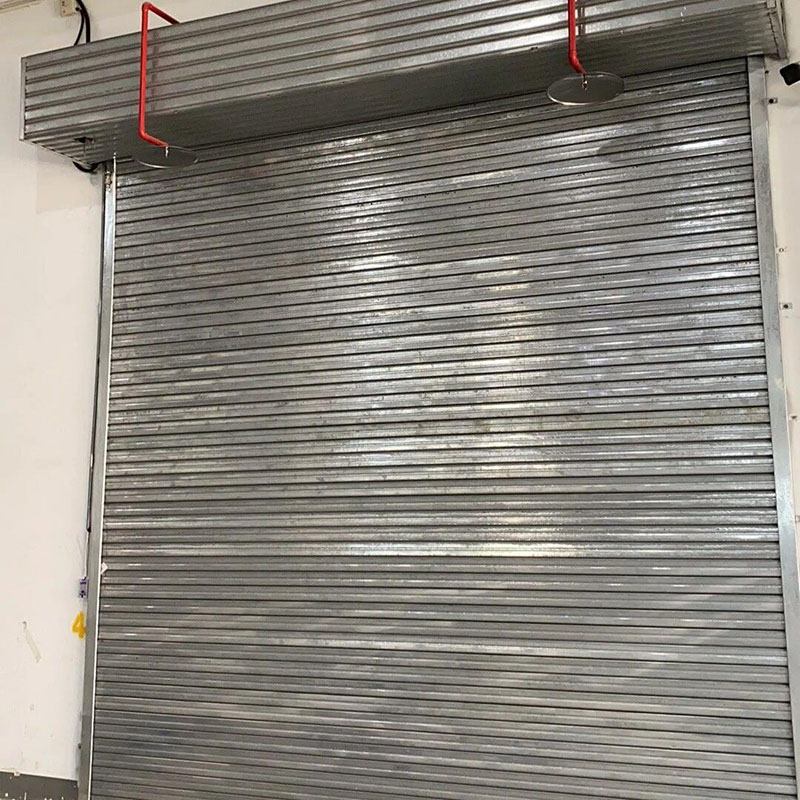

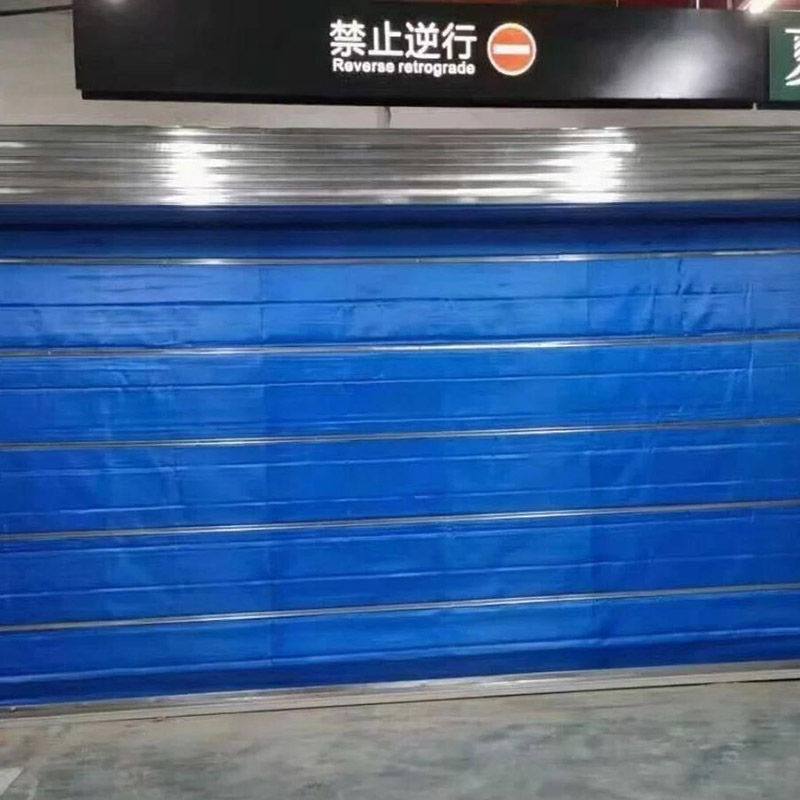

The China Fire-resistant Roller Shutter Doors by Futai supplier primarily serve the purpose of fire compartmentation and are a fire-resistant and heat-insulating facility suitable for large openings in buildings. Common types of fire-resistant roller shutters include: steel fire-resistant roller shutters, inorganic fiber composite fire-resistant roller shutters, and special-grade fire-resistant roller shutters.
Special-grade fire-resistant roller shutters, in addition to fire resistance integrity, also possess heat insulation and smoke prevention properties, effectively preventing the spread of fire. The control, feedback, and emergency stop/escape functions of the roller shutters are very important.

Product Feature And Application

(1) Fire Resistance Rating: Available with fire resistance ratings of 1.5 to 3 hours or more, meeting various fire safety design requirements.
(2) Door Body Insulation Structure: Internally filled with fire-resistant aluminum silicate cotton or inorganic fire-resistant structure, ensuring that the other side of the door maintains a low temperature during a fire.
(3) Multiple Control Methods: Typically connected to the fire alarm system, automatically lowering upon receiving a fire alarm; it can also be controlled via switches, remote control, and remote access.
(4) Smoke Isolation: Sealing strips and smoke shields are installed between the door panels and guide rails, effectively isolating smoke during a fire and ensuring safe evacuation of personnel.
Mainly used for fire compartmentalization within buildings, such as shopping malls, underground parking lots, and factory interiors.

Production Details

(1) Door Panel Structure: ① Double-layer galvanized steel plate with internal filling of intumescent fire-resistant and heat-insulating material; ② Inorganic fiber door panel: composed of glass fiber or ceramic fiber fabric and aluminum foil composite, resistant to high temperatures (above 1100 degrees Celsius).
(2) Drive and Control System: Uses a Fire-resistant Roller Shutter Doors motor with power-off braking and overheat protection functions; the control box receives fire signals and issues commands; equipped with wall-mounted buttons installed on both sides of the door opening, with an emergency stop function.
(3) Safety and Auxiliary Devices: Equipped with a temperature control sensor, which instructs the rolling shutter to descend when the temperature reaches approximately 73 degrees Celsius; an audible and visual alarm is activated when the rolling shutter is in operation.

Our service

Based on the architectural drawings, fire safety regulations, and on-site installation conditions you provide, combined with on-site survey data, we will develop a precisely tailored technical solution for you. We will confirm key technical parameters with you before production and can provide samples for verification. Upon delivery, the product will be accompanied by complete qualification documents and quality inspection reports. All products come with a three-year warranty and long-term after-sales technical support services.
