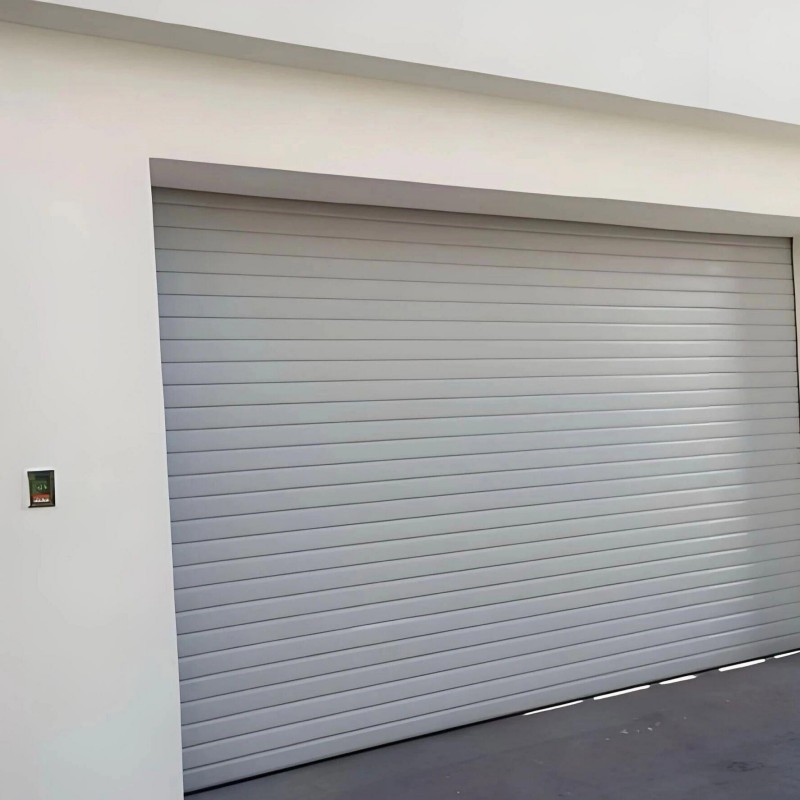

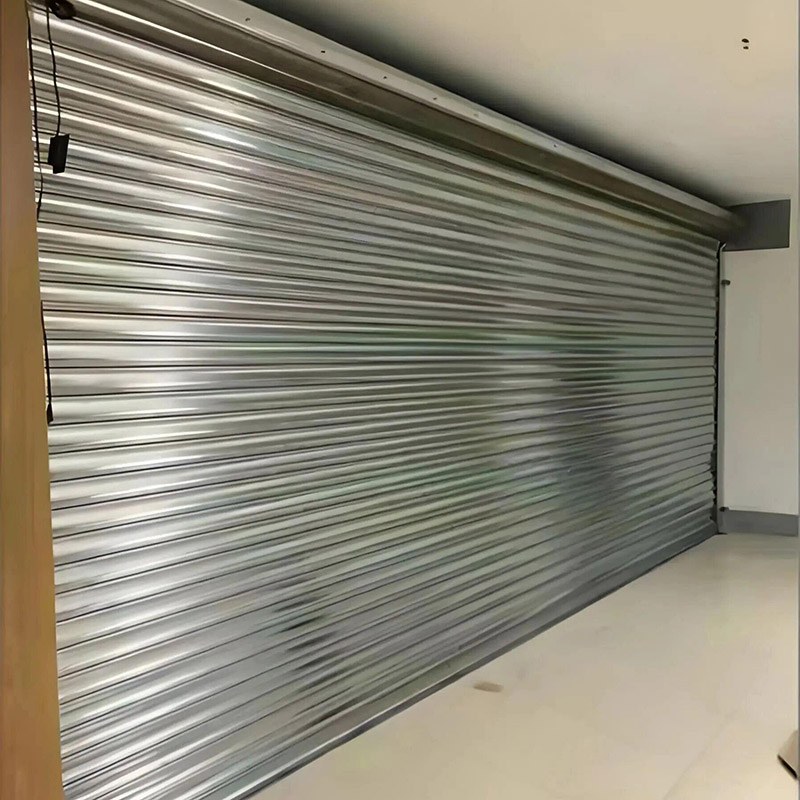

Industrial Roller Shutter Door

In the industrial and logistics sectors, the function of Industrial Roller Shutter Door by Futai factory goes beyond simply separating spaces; operational efficiency, safety, and reliability are equally important. Our industrial roller doors can be custom-designed and manufactured to meet customer needs, and are capable of handling intelligent control, harsh environments, and stringent safety standards.

Product Feature And Application

Industrial roller shutter door features: The door panels and guide rails are made of thickened metal materials, ensuring high strength and corrosion resistance; equipped with high-efficiency worm gear motors or tubular motors, combined with torsion springs and double bearing support, ensuring smooth and efficient operation of the roller shutter door; equipped with a safety bottom edge or infrared sensing device to enable reverse movement upon encountering obstacles, ensuring that objects are not accidentally crushed. Widely used in factories, logistics centers, repair workshops, and other places.

Production Details

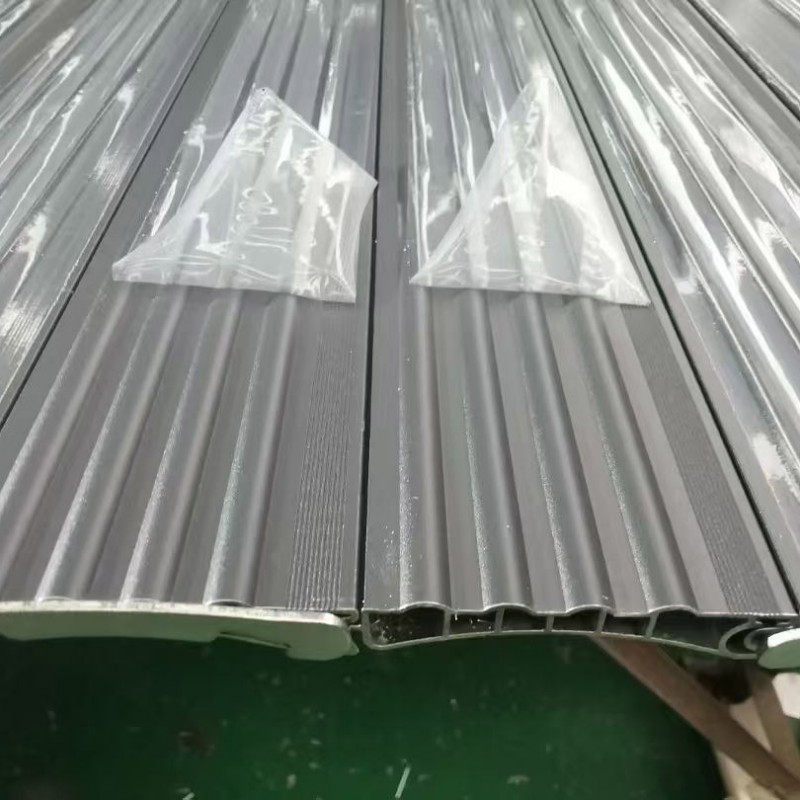

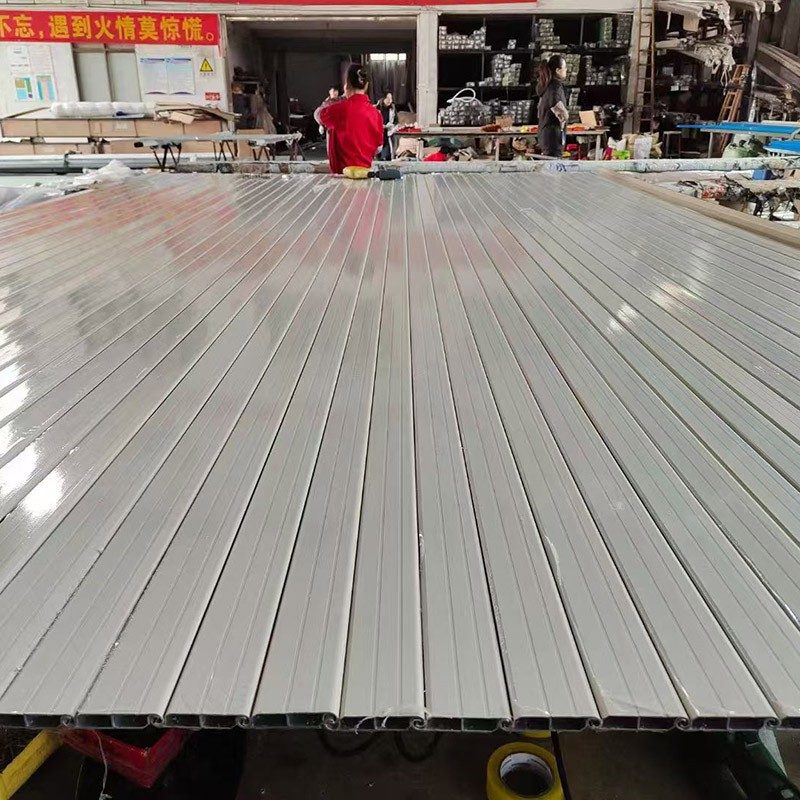

1. Door Panel Structure: Made of 1.0mm thick double-layered interlocking galvanized steel plates, internally filled with 32kg/m³ high-density polyurethane foam, with a heat transfer coefficient K value ≤ 0.8W/(㎡·K). Nylon rollers are built into the curtain panel connections, resulting in a friction coefficient ≤ 0.03.
2. Guide Rail System: Aluminum alloy guide rails with a wall thickness of at least 2.0mm and a surface anodized film thickness of ≥ 15μm. High-molecular wear-resistant strips are pre-installed on the inner side of the guide rails, effectively reducing operating noise to below 62dB(A).
3. Motor Configuration: Worm gear motor with IP55 protection rating as standard, equipped with a temperature control protection device; tubular motor uses all-copper windings with F-class insulation.
4. Balancing System: Dynamic balance torsion spring assembly; each spring has undergone 100,000 fatigue tests. The spring wire diameter is precisely calculated and matched according to the door weight, with an error range of ≤ ±3%.
5. Anti-Pinch Device: Adjustable safety bottom edge sensitivity (response pressure 5-15N adjustable), response time < 0.3 seconds. Infrared light curtain with a detection distance of up to 8 meters and a beam spacing of ≤ 50mm.
6. Limit Accuracy: Uses absolute encoder positioning, equipped with mechanical limit + electronic limit dual protection.

Our service

Based on the drawings, fire safety regulations, and on-site installation conditions you provide, combined with on-site survey data, we will develop a precisely tailored technical solution for you. We will confirm key technical parameters with you before production and can provide samples for verification. Upon product delivery, complete qualification documents and quality inspection reports will be included. All products come with a three-year warranty and long-term after-sales technical support services.
